IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1x Output)
IP67 Waterproof Industrial PoE Extender Overview
LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is
ideally suited for security surveillance and network engineering
applications.
IP67 Waterproof Industrial PoE Extender Features
IP67-rated aluminum housing for robust protection
Gigabit Ethernet ports (10/100/1000Mbps) with PoE support (IEEE 802.3af/at/bt)
1× input and 1× output for flexible connectivity
Extends PoE and data up to 100 meters
Easy wall-mount installation
Wide operating temperature: -40°C to 80°C
No external power needed—powered via PoE
True plug-and-play operation
Supports 2K MAC address table for expanded connections
10kB jumbo frame support in 1000Mbps full-duplex mode
IP67 Waterproof Industrial PoE Extender Technical Indexes
| Ethernet Port |
| PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| PoE Output Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Cascade Connection | Support 3 grade |
| Power over Ethernet |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| Input Voltage | IEEE802.3 bt 90W |
| PoE Output Power | Maximum 65W |
| Single Port PoE Output | Maximum 60W |
| Switch Property |
| Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab
Gigabit Ethernet |
| Forwarding Modes | Store and Forward |
| Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. |
| MAC Table | 2K |
| Switching Capacity | 6Gbps |
| Packet Forwarding Rate | 4.46Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half
duplex |
| Jumbo Frame | 10K bytes |
| Environment |
| Surge Immunity | 6KV, Standard: IEC |
| ESD Protection | 6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
| Protection Level | IP 67 |
| Explosion-Proof Rating | IK10 |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0~95% (non-condensing) |
| Physical Parameter |
| Dimensions (WxDxH) | 195 x 75 x 46 mm |
| Weight | 0.6 kg |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount |
| Certifications |
| Certifications | CE, FCC, RoHS |
IP67 Waterproof Industrial PoE Extender Ordering Information
| Model | Description |
| LNK-WP-IPE101 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x
Output |
| Mounting Options | Wall Mount Bracket is included. |

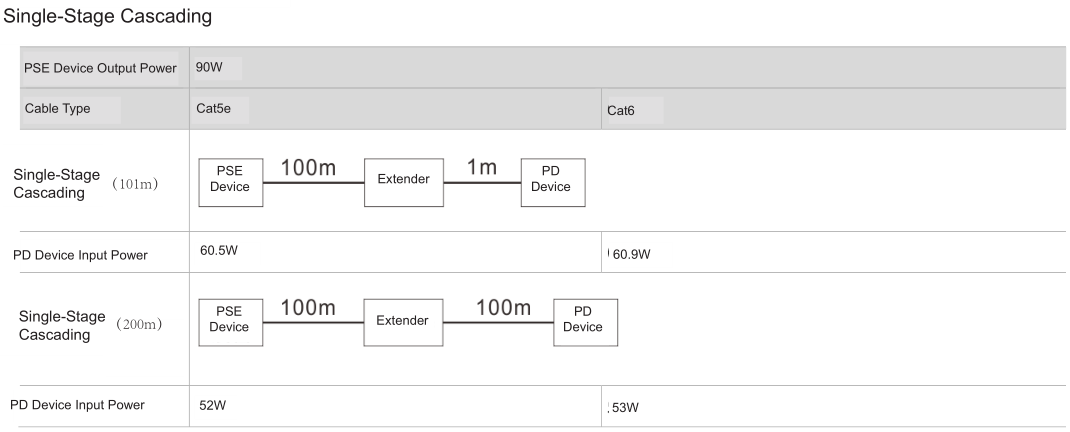

IP67 Waterproof Industrial PoE Extender 3-Grade Cascading Diagram
